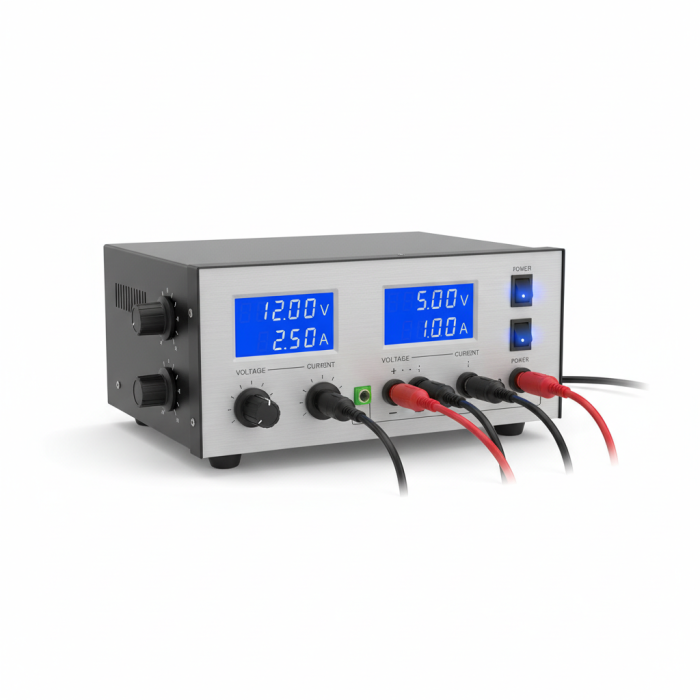

Dual Output Laboratory Power Supply 0–30V / 0–3A × 2 — isolated
€69.00
In stock
SKU
TKP-ALM-LA-004
Dual lab power supply 0–30 V / 0–3 A × 2, isolated, series/parallel, 5 V aux output
Dual output laboratory power supply with two galvanically isolated independent channels 0–30 V / 0–3 A each. Series mode for 0–60 V and parallel mode for 0–6 A. 4-digit LED display per channel. Voltage regulation ≤ 0.01% + 5 mV. Ripple ≤ 1 mVrms. Independently switchable outputs. Per-channel short-circuit and overload protection. Auxiliary fixed 5 V / 3 A output. 220–240 V AC mains input. Dimensions 310 × 155 × 170 mm. Perfect for powering symmetrical dual supply circuits (op-amps, audio).
| Output Voltage | 0–30V Adjustable |
|---|---|
| Output Current | 0–5A Adjustable |
| Efficiency Rating | >90% |
| Regulated | Yes |
| Input Voltage | 100–240V AC |
| Output Connector | Screw Terminal |
| Brand | VoltCore |
| Mounting Type | DIN Rail |
| Voltage Compatibility | Multi-voltage |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Single |
