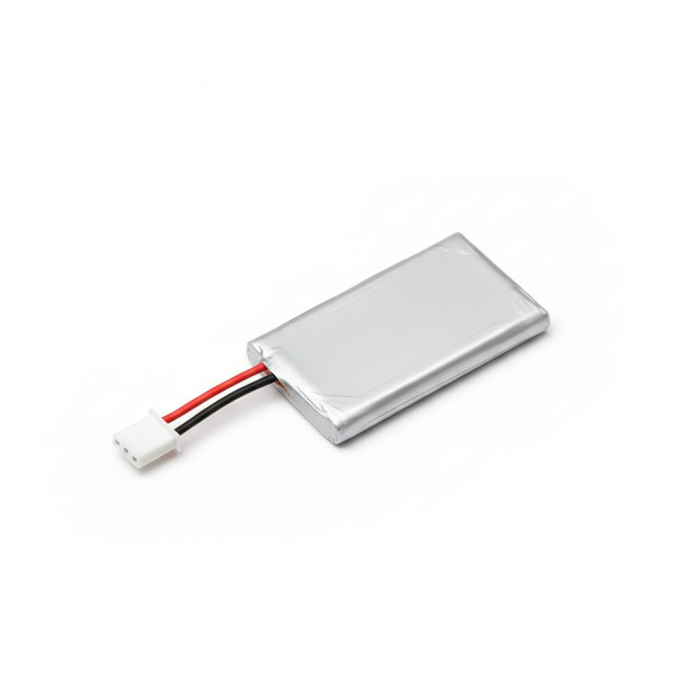

LiPo Battery 3.7V 1000mAh with JST-PH 2.0 connector

€5.90
In stock
SKU
TKP-ALM-BP-001
LiPo 3.7 V 1000 mAh, JST-PH 2.0, integrated PCM, 2C discharge, 50 × 34 mm
Single cell lithium-polymer (LiPo) battery 3.7 V nominal (4.2 V full charge, 3.0 V cutoff). Capacity 1000 mAh (3.7 Wh). JST-PH 2.0 mm connector, 2 pins, standard polarity (+ red, − black). Cable length 50 mm. Integrated PCM protection circuit (overcharge, deep discharge, short-circuit, 3 A overcurrent). Max continuous discharge current 2C (2 A). Recommended charge current 0.5C (500 mA). Cell dimensions 50 × 34 × 5.5 mm. Weight 22 g. Cycle life ≥ 500 at 80% capacity. Compatible with Arduino, ESP32, GPS, wearables.
More Information
Output Voltage 3.3V
Output Current 1A
Efficiency Rating >90%
Regulated No
Input Voltage 3.7V Li-ion
Output Connector JST
Brand VoltCore
Mounting Type Not Applicable
Voltage Compatibility 3.3V
RoHS Compliant Yes
Availability In Stock
Packaging Pack of 5
