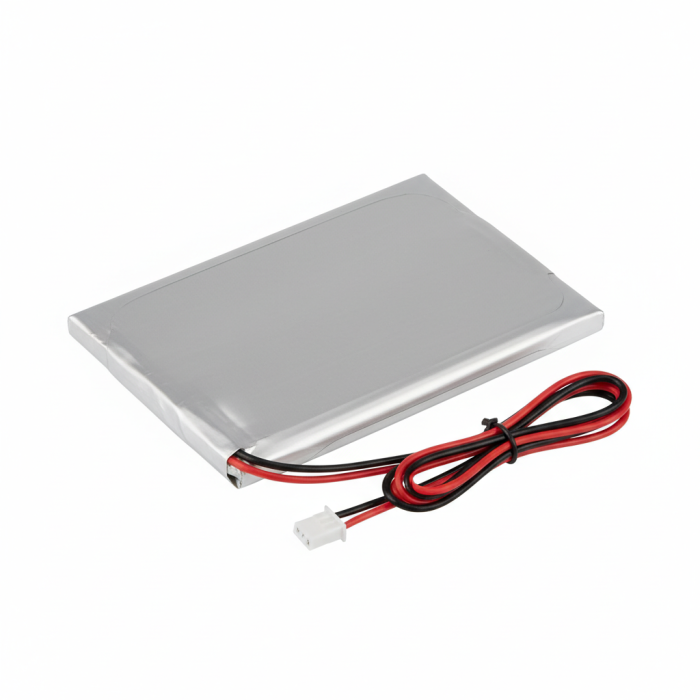

LiPo Battery 3.7V 2500mAh — high capacity JST connector
€8.90
In stock
SKU
TKP-ALM-BP-002
LiPo 3.7 V 2500 mAh, JST-PH, PCM, 1C continuous, 70 × 40 mm, UN38.3
High capacity lithium-polymer battery 3.7 V / 2500 mAh (9.25 Wh). JST-PH 2.0 mm connector with 60 mm cable. Integrated PCM protection circuit. Max continuous discharge current 1C (2.5 A), 2C peak. Charge current 0.5C (1.25 A). Low cutoff voltage 2.75 V, high 4.2 V. Dimensions 70 × 40 × 6 mm. Self-discharge < 3% per month. UN38.3 certified for transport. Ideal for projects requiring extended runtime: weather stations, GPS trackers, time-lapse cameras, DIY portable consoles.
| Output Voltage | 3.3V |
|---|---|
| Output Current | 1A |
| Efficiency Rating | >90% |
| Regulated | No |
| Input Voltage | 3.7V Li-ion |
| Output Connector | JST |
| Brand | VoltCore |
| Mounting Type | Not Applicable |
| Voltage Compatibility | 3.3V |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Pack of 5 |
