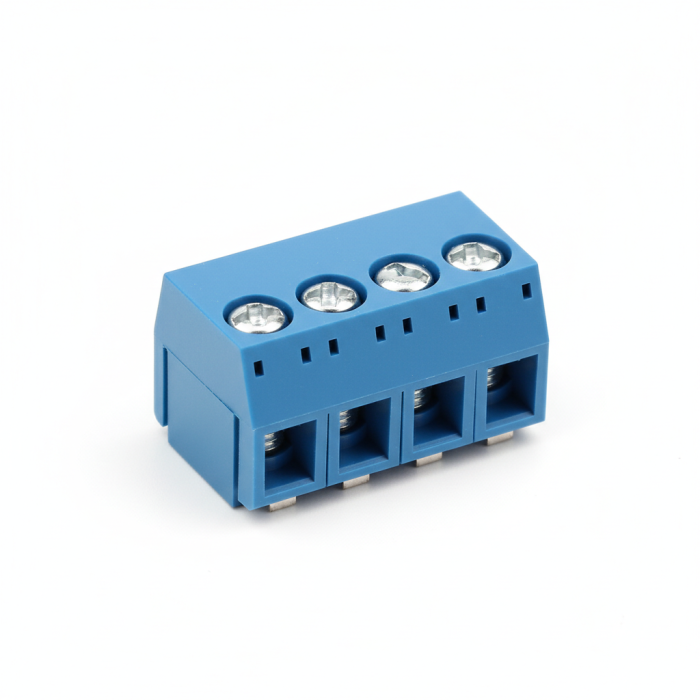

Screw terminal block 4-way 5.08mm pitch blue — 300V 16A
Special Price
€0.60
Regular Price
€0.75
In stock
SKU
TKP-CON-BO-004
Screw terminal block 4-way, 5.08mm pitch, 300V/16A, blue, for motors/power
PCB screw terminal block, 4-way at 5.08mm pitch. Robust blue nylon housing. Phillips/slotted zinc-plated steel screws, tin-plated brass contacts. Wire gauge 0.2–2.5mm². 300V rated, 16A per position. 4 independent connections. Applications: power + signal, H-bridges, stepper motor connections, multi-channel sensor interfaces.
| Connector Type | Screw Terminal |
|---|---|
| Pin Pitch | 5.08mm |
| Gender | Mixed |
| Contact Material | Brass |
| Waterproof | No |
| Number of Contacts | 3 |
| Mounting | Screw |
| Brand | VoltCore |
| Mounting Type | Panel Mount |
| Voltage Compatibility | Not Applicable |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Pack of 5 |
