830-Point Breadboard with Power Rails
€4.90
In stock
SKU
TKP-PCB-BB-001
830-point breadboard, 165×55mm, power rails, adhesive backing

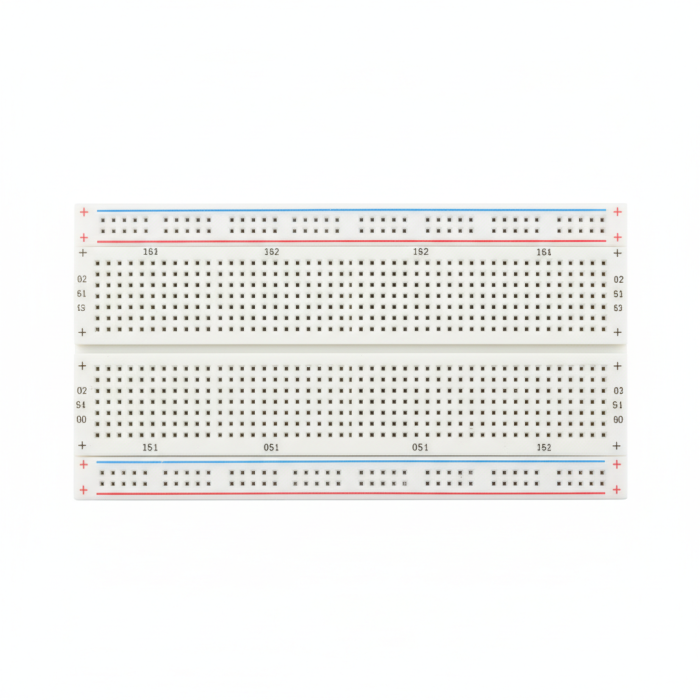

830-point breadboard (630 wiring points + 200 distribution points), dimensions 165 × 55 × 9 mm. Two side power rails with red/blue markings. Nickel-plated phosphor bronze contacts, contact resistance < 20 mΩ. Repositionable adhesive backing. Compatible with AWG 20 to AWG 29 wires. Supports over 50,000 insertion cycles. Ideal for Arduino, ESP32 and analog circuit prototyping.
| PCB Layers | Single-sided |
|---|---|
| PCB Material | FR4 |
| Board Size | Standard (100×70mm) |
| Copper Thickness | 35µm (1oz) |
| Lead-free | Yes |
| Surface Finish | Not Applicable |
| Brand | ProtoLab |
| Mounting Type | Not Applicable |
| Voltage Compatibility | Not Applicable |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Single |
