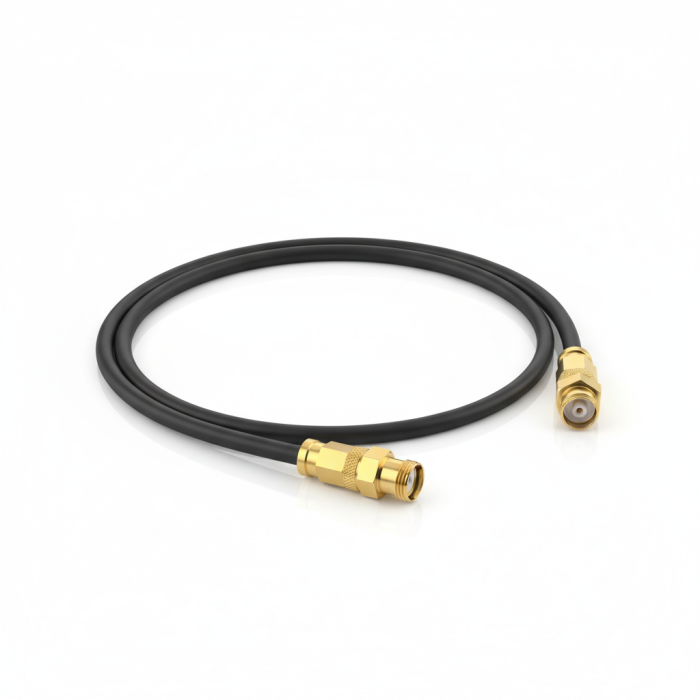

Coaxial Cable RG174 50Ω — 5m with SMA Connector
€7.90
In stock
SKU
TKP-CAB-CX-001
Coaxial cable RG174 50Ω, 5m, 2× SMA male, shielded, up to 3 GHz
RG174/U 50 ohm coaxial cable, 5 meters long, fitted with a male SMA connector at each end. 0.48 mm solid copper core, tinned copper braid shielding (90% coverage), PTFE dielectric. Outer diameter 2.8 mm. Attenuation 0.9 dB/m at 1 GHz. Suitable for RF links, GPS antennas, LoRa modules and SDR receivers up to 3 GHz.
| Wire Gauge | AWG 18 |
|---|---|
| Conductor Material | Bare Copper |
| Insulation Type | PVC |
| Cable Length | 1m |
| Shielded | Yes |
| Number of Conductors | 1 |
| Jacket Colour | Black |
| Brand | VoltCore |
| Mounting Type | Cable |
| Voltage Compatibility | Not Applicable |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Single |
