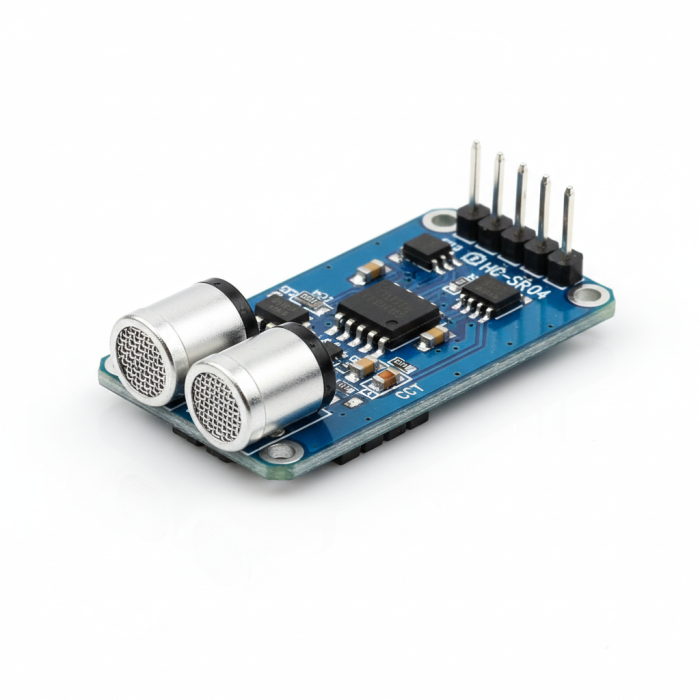

HC-SR04 Ultrasonic Distance Sensor — 2 cm to 4 m
€2.50
In stock
SKU
TKP-SEN-UL-001
HC-SR04 ultrasonic, 2–400 cm, 40 kHz, 3 mm resolution, 5 V
HC-SR04 ultrasonic distance sensor module with integrated 40 kHz transmitter and receiver. Measurement range 2 cm to 400 cm, resolution 3 mm. Effective measurement angle ~15°. Operates by measuring time-of-flight (ToF) of an ultrasonic pulse. 5 V power supply, 15 mA consumption. Recommended sampling frequency 20 Hz. 4-pin connector (VCC, Trig, Echo, GND). Trigger pulse ≥ 10 µs, echo signal proportional to distance. Applications: obstacle-avoiding robot, level gauge, parking.
| Sensor Type | Ultrasonic |
|---|---|
| Measurement Range | 2cm à 4m |
| Output Type | PWM |
| Accuracy | ±2% |
| Digital Interface | Yes |
| Sensor Supply | 5V |
| Brand | NanoSilicon |
| Mounting Type | Breadboard |
| Voltage Compatibility | 5V |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Single |
