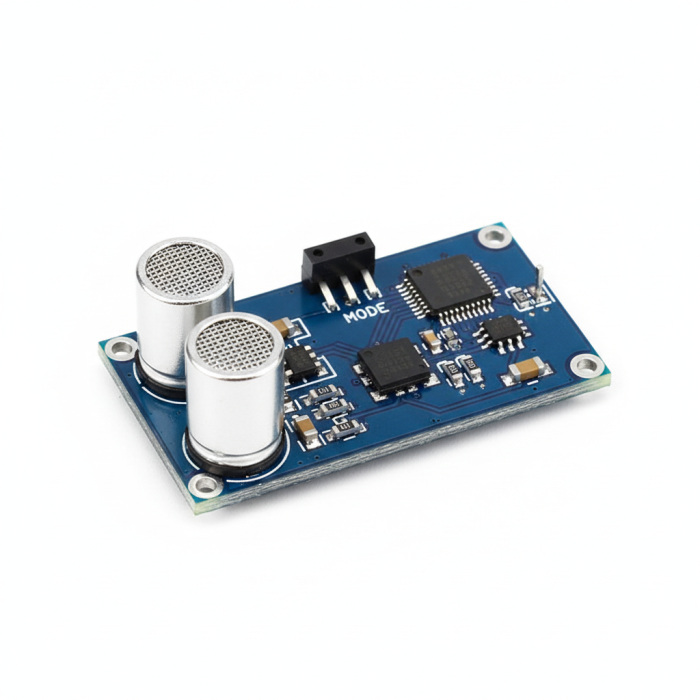

US-100 Ultrasonic Distance Sensor — UART/Trigger Mode
€4.50
In stock
SKU
TKP-SEN-UL-003
US-100 ultrasonic, 2–450 cm, UART+trigger, temperature compensation, 2.4–5.5 V
US-100 ultrasonic distance sensor module with dual operating mode selectable by jumper: trigger/echo mode (HC-SR04 compatible) and serial UART mode (9600 bps, returns distance in mm as 2 bytes). 40 kHz frequency, range 2 cm to 450 cm, accuracy ±1 %. Integrated temperature sensor for automatic speed-of-sound compensation. 2.4 to 5.5 V power supply (native 3.3 V compatible). 3.3 V safe outputs. Applications: robotics, parking, level.
| Sensor Type | Ultrasonic |
|---|---|
| Measurement Range | 2cm à 4m |
| Output Type | PWM |
| Accuracy | ±2% |
| Digital Interface | Yes |
| Sensor Supply | 5V |
| Brand | NanoSilicon |
| Mounting Type | Breadboard |
| Voltage Compatibility | 5V |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Single |
