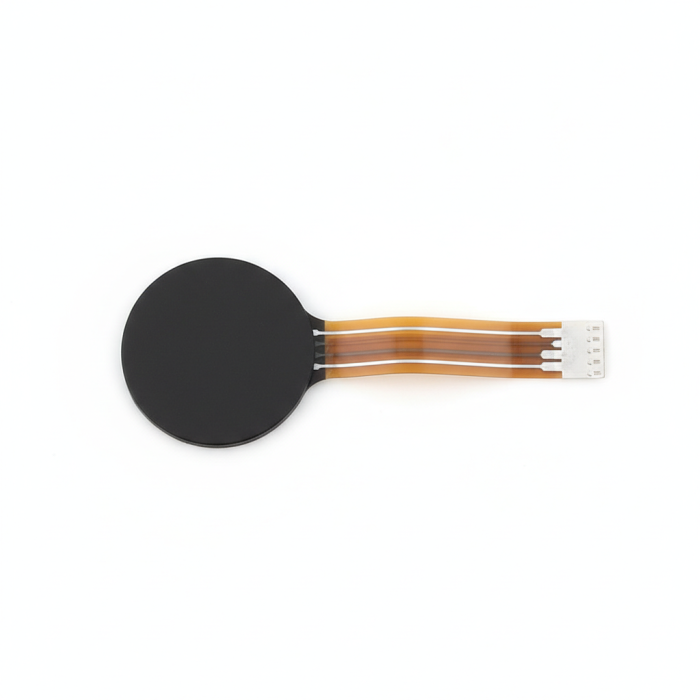

FSR 402 Force Sensitive Resistor — Round 12.7 mm
Special Price
€5.90
Regular Price
€6.90
In stock
SKU
TKP-SEN-PR-003
FSR 402, force sensitive resistor Ø12.7 mm, 0.2–20 N, 0.46 mm thick
FSR 402 (Force Sensitive Resistor) by Interlink Electronics. 12.7 mm diameter circular active area. Variable resistance depending on applied force: > 10 MΩ at rest, ~1 kΩ under 10 N. Force range 0.2 to 20 N. Thickness 0.46 mm, tail connector compatible with crimp connector or soldering. Not absolutely calibrated, ideal for relative pressure detection. Applications: touch interfaces, robotic grippers, smart insoles, pressure-sensitive buttons.
| Sensor Type | Pressure |
|---|---|
| Measurement Range | 0 à 10 bar |
| Output Type | I²C |
| Accuracy | ±1% |
| Digital Interface | Yes |
| Sensor Supply | 3.3V–5V |
| Brand | NanoSilicon |
| Mounting Type | Breadboard |
| Voltage Compatibility | 3.3V |
| RoHS Compliant | Yes |
| Availability | Last Units |
| Packaging | Single |
