MPXV7002DP Differential Pressure Sensor — Pitot Tube
€14.90
In stock
SKU
TKP-SEN-PR-002
MPXV7002DP differential pressure ±2 kPa, analog, Pitot tube, 5 V

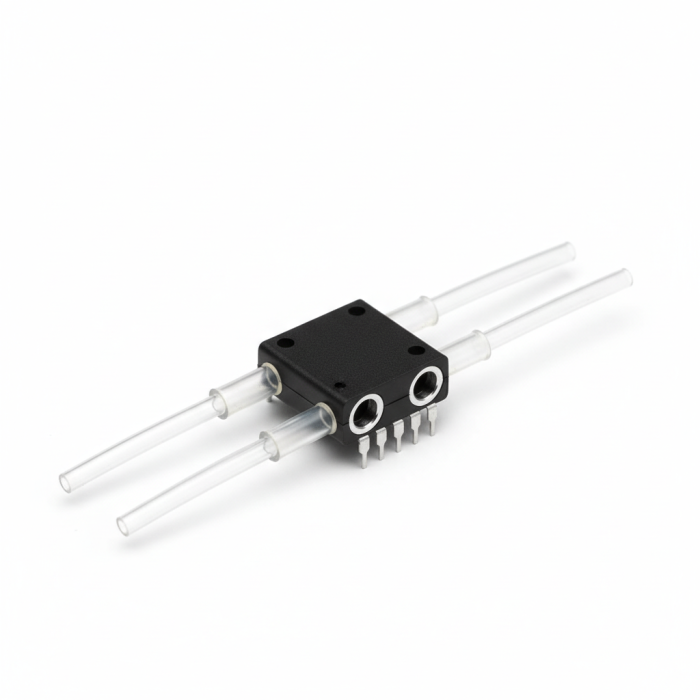

MPXV7002DP differential pressure sensor from NXP/Freescale in SOP package with two tubular ports. Range −2 to +2 kPa, sensitivity 1 V/kPa, analog output centered on Vcc/2. 5 V power supply, ratiometric output signal 0.5 to 4.5 V. Integrated temperature compensation 10–60 °C. Accuracy ±2.5 % full scale. Response time 1 ms. Applications: airspeed measurement (Pitot tube), HVAC ventilation control, spirometry, inter-room pressure differential.
| Sensor Type | Pressure |
|---|---|
| Measurement Range | 0 à 10 bar |
| Output Type | I²C |
| Accuracy | ±0.5% |
| Digital Interface | Yes |
| Sensor Supply | 3.3V–5V |
| Brand | NanoSilicon |
| Mounting Type | Breadboard |
| Voltage Compatibility | 3.3V |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Single |
