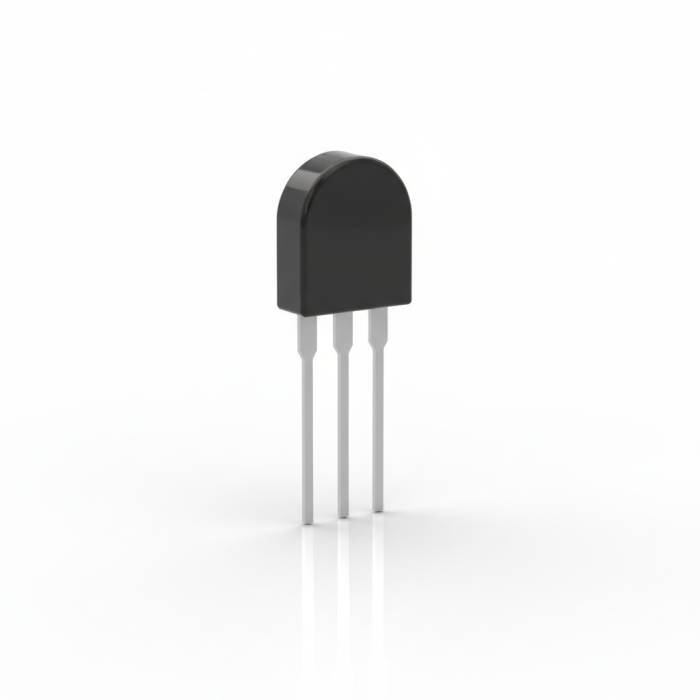

LM35DZ Analog Temperature Sensor — TO-92
€1.90
In stock
SKU
TKP-SEN-TE-003
LM35DZ analog, 0–100 °C, 10 mV/°C, TO-92, ±0.5 °C accuracy
LM35DZ analog temperature sensor in TO-92 package. Linear output calibrated directly in degrees Celsius: 10 mV/°C. Measurement range 0 °C to +100 °C, accuracy ±0.5 °C at 25 °C. 4 to 30 V power supply, typical consumption 60 µA. Low self-heating (0.08 °C in still air). No external calibration required. Perfect for direct reading on Arduino, ESP32 analog input or ADC converter.
| Sensor Type | Temperature |
|---|---|
| Measurement Range | -40°C à +125°C |
| Output Type | Analog |
| Accuracy | ±1°C |
| Digital Interface | No |
| Sensor Supply | 3.3V–5V |
| Brand | NanoSilicon |
| Mounting Type | Breadboard |
| Voltage Compatibility | 3.3V |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Single |
