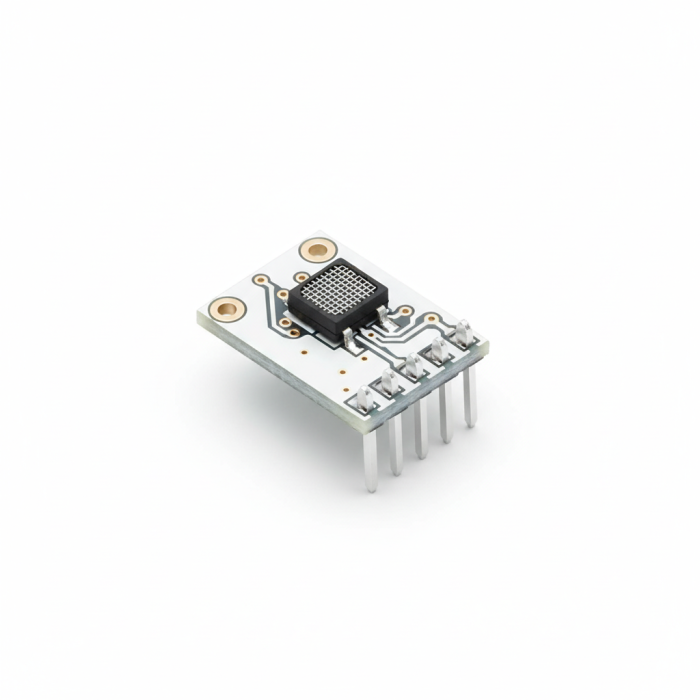

SHT31 High-Precision Humidity and Temperature Sensor — I²C
€9.90
In stock
SKU
TKP-SEN-HU-004
SHT31 breakout, humidity ±2 %, temperature ±0.3 °C, I²C, 2.15–5.5 V
Sensirion SHT31-D sensor module on breakout with regulator and level-shifter. Relative humidity 0–100 % RH, typical accuracy ±2 % (±1.5 % in the 10–90 % range). Temperature −40 to +125 °C, accuracy ±0.3 °C. Fast I²C interface up to 1 MHz, two selectable addresses (0x44/0x45). Integrated heater to prevent condensation. Optional PTFE filter. 2.15 to 5.5 V power supply. Consumption 1.7 µA in sleep mode.
| Sensor Type | Temperature + Humidity |
|---|---|
| Measurement Range | 0 à 100% HR |
| Output Type | I²C |
| Accuracy | ±2% |
| Digital Interface | Yes |
| Sensor Supply | 3.3V–5V |
| Brand | NanoSilicon |
| Mounting Type | Breadboard |
| Voltage Compatibility | 5V |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Single |
