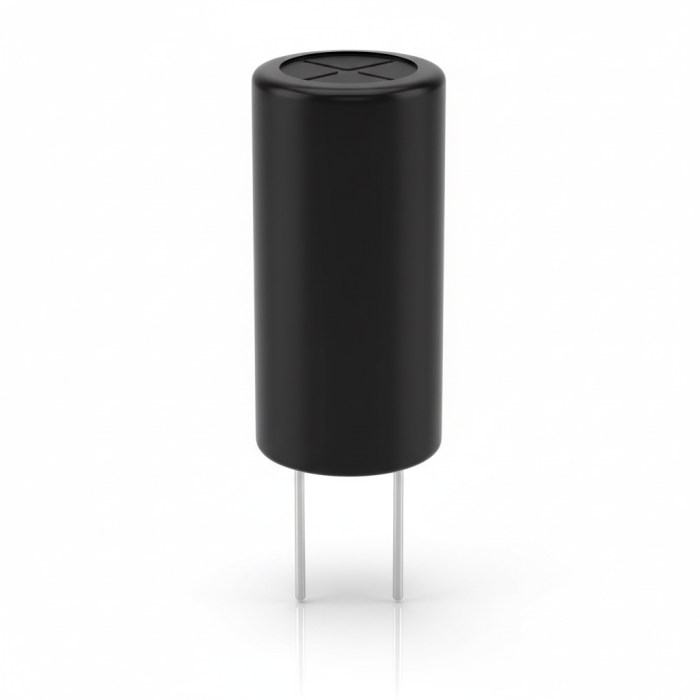

High-voltage electrolytic capacitor 47µF 400V 105°C
€3.90
In stock
SKU
TKP-CAP-EL-006
Electrolytic capacitor 47µF 400V 105°C, high voltage, switch-mode power supplies.
Radial high-voltage aluminum electrolytic capacitor 47µF at 400V. Long-life 105°C series (5000 hours). ±20% tolerance. 16mm diameter, 32mm height. Designed for switch-mode power supplies, electronic ballasts, AC/DC converters and power circuits. Maximum leakage current of 47µA. Ripple current of 700mA RMS.
| Capacitance | 100µF |
|---|---|
| Voltage Rating | 25V |
| Dielectric Type | Aluminium Electrolytic |
| ESR Rating | Standard |
| Polarized | Yes |
| Lifetime | 5000h |
| Max. Temperature | 85°C |
| Brand | NanoSilicon |
| Mounting Type | Through-hole (THT) |
| Voltage Compatibility | Multi-voltage |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Pack of 25 |
