HC-SR501 PIR Motion Detector — 120° Angle
€2.90
In stock
SKU
TKP-SEN-MV-001
PIR HC-SR501, 120°, 3–7 m range, adjustable delay, 5–20 V

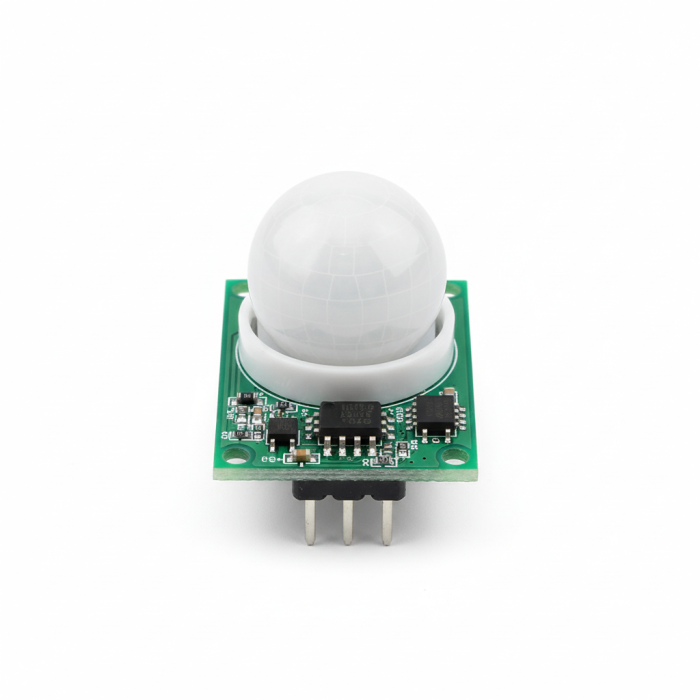

HC-SR501 passive infrared (PIR) motion detector module with Fresnel lens. 120° detection angle, adjustable range 3 to 7 m. Two potentiometers: sensitivity and delay (5 s to 5 min). Single (L) or repeatable (H) trigger mode selectable by jumper. 5 to 20 V power supply, 3.3 V digital output (HIGH during detection). Consumption < 65 µA in standby. 60 s stabilization time at startup. Applications: automatic lighting, alarm, home automation.
| Sensor Type | Motion (PIR) |
|---|---|
| Measurement Range | 0 à 5m |
| Output Type | Analog |
| Accuracy | ±5% |
| Digital Interface | No |
| Sensor Supply | 5V |
| Brand | NanoSilicon |
| Mounting Type | Breadboard |
| Voltage Compatibility | 5V |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Single |
