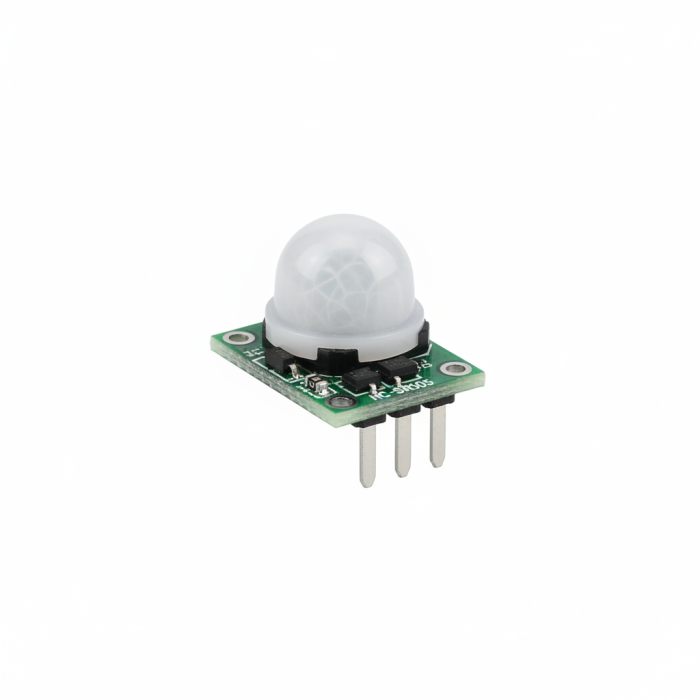

HC-SR505 Mini PIR Detector — Low Power
€2.20
In stock
SKU
TKP-SEN-MV-002
Mini PIR HC-SR505, 100°, 3 m range, 10×23 mm, ultra-compact
HC-SR505 mini PIR module, ultra-compact 10 × 23 mm form factor. 100° detection angle, 3 m range. Fixed delay ~8 seconds, repeatable trigger mode. 4.5 to 20 V power supply, 3.3 V output. Consumption < 60 µA. 2.5 s blocking time between two detections. Simplified design without adjustment potentiometer, ideal for integration into compact housings, automatic nightlights, low-footprint embedded systems.
| Sensor Type | Accelerometer |
|---|---|
| Measurement Range | 0 à 5m |
| Output Type | I²C |
| Accuracy | ±5% |
| Digital Interface | Yes |
| Sensor Supply | 5V |
| Brand | NanoSilicon |
| Mounting Type | Breadboard |
| Voltage Compatibility | 5V |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Single |
