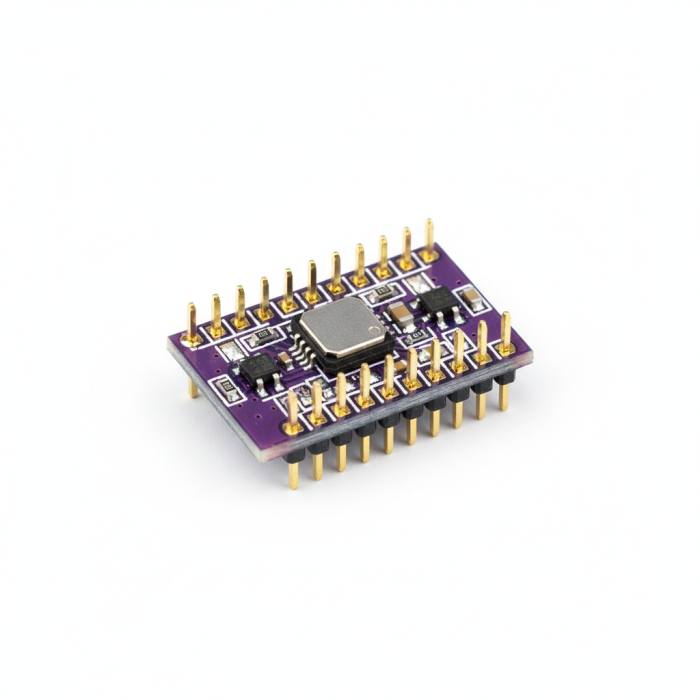

MPU-9250 9-Axis Accelerometer + Gyroscope + Magnetometer Module — I²C/SPI
Special Price
€7.90
Regular Price
€9.90
In stock
SKU
TKP-SEN-MV-004
MPU-9250 breakout 9-axis, accelerometer+gyro+magnetometer, I²C+SPI
9-axis IMU module MPU-9250 (successor to MPU-9150) on PCB breakout. 3-axis accelerometer (±2/4/8/16 g), 3-axis gyroscope (±250/500/1000/2000 °/s) and 3-axis magnetometer AK8963 (±4800 µT, resolution 0.6 µT/LSB). 16-bit ADC, onboard DMP. I²C (up to 400 kHz) and SPI (up to 1 MHz) interfaces. 3.3 to 5 V power supply. 512-byte FIFO. Enables absolute orientation computation (magnetic heading). Applications: inertial navigation, AHRS, robotics, virtual reality.
| Sensor Type | Gyroscope |
|---|---|
| Measurement Range | 0 à 5m |
| Output Type | SPI |
| Accuracy | ±5% |
| Digital Interface | Yes |
| Sensor Supply | 5V |
| Brand | ProtoLab |
| Mounting Type | Breadboard |
| Voltage Compatibility | 5V |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Single |
