DPS5005 Laboratory Power Supply Module — 50V / 5A adjustable buck
€32.90
In stock
SKU
TKP-ALM-LA-003
DPS5005 buck module, 0–50 V / 0–5 A, color LCD, CC/CV, efficiency ≥ 90%

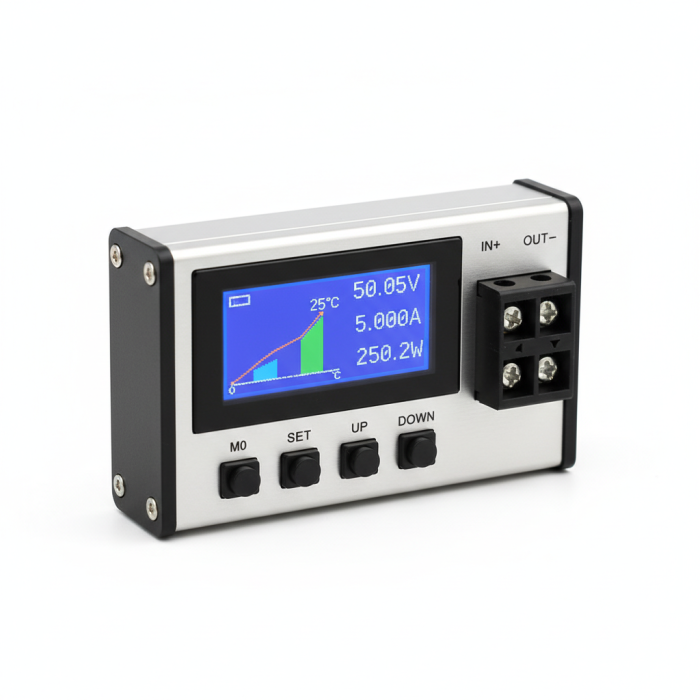

DPS5005 switching buck power supply module with color LCD display. Adjustable output voltage 0–50 V, current 0–5 A (250 W max depending on input source). Input voltage 6–55 V DC. Display resolution 10 mV / 1 mA. Efficiency ≥ 90%. CC/CV modes with automatic switching. User-configurable OVP, OCP, OPP protection. Serial communication via rear connector (Bluetooth/WiFi option). PCB dimensions 79 × 43 mm. Can be integrated into a custom enclosure to create a bespoke power supply.
| Output Voltage | 0–30V Adjustable |
|---|---|
| Output Current | 0–5A Adjustable |
| Efficiency Rating | >90% |
| Regulated | Yes |
| Input Voltage | 100–240V AC |
| Output Connector | Screw Terminal |
| Brand | VoltCore |
| Mounting Type | DIN Rail |
| Voltage Compatibility | Multi-voltage |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Single |
