TCS34725 RGB Color Sensor Module — I²C with IR Filter
€7.90
In stock
SKU
TKP-SEN-LU-004
TCS34725 RGB+Clear color sensor, I²C, IR filter, integrated LED, 16-bit

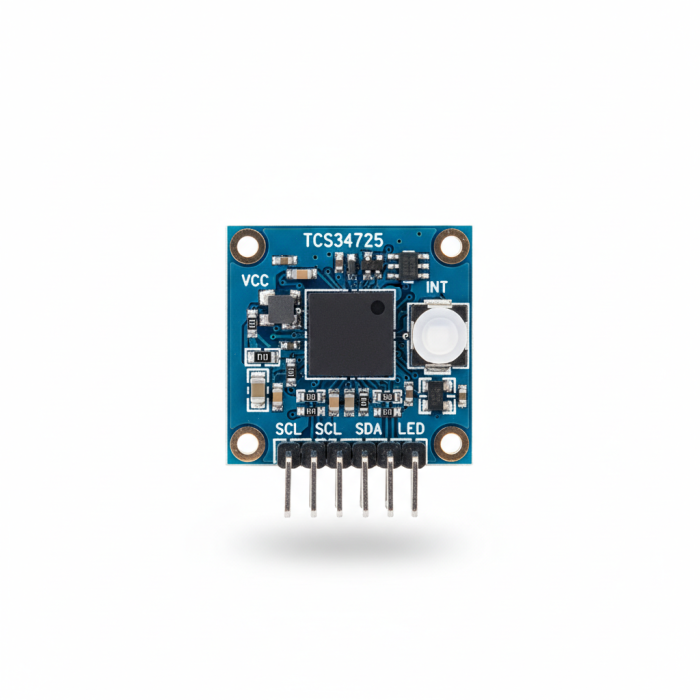

TCS34725 color sensor module on PCB breakout with white illumination LED and integrated infrared filter. Measures Red, Green, Blue and Clear (total light) components. 16-bit ADC per channel, programmable gain (1×, 4×, 16×, 60×), integration time 2.4 ms to 614 ms. I²C interface (address 0x29), 3.3 to 5 V power supply. IR blocking filter removes parasitic infrared component. Applications: color sorting, screen calibration, color detection, ripeness tracking.
| Sensor Type | Light (LDR) |
|---|---|
| Measurement Range | 0 à 100V |
| Output Type | Analog |
| Accuracy | ±5% |
| Digital Interface | No |
| Sensor Supply | 3.3V |
| Brand | NanoSilicon |
| Mounting Type | Breadboard |
| Voltage Compatibility | 3.3V |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Single |
