IR Flame Sensor Module 760–1100 nm — Fire Detection
Special Price
€1.90
Regular Price
€2.20
In stock
SKU
TKP-SEN-LU-006
IR flame sensor 760–1100 nm, 60°, 1 m range, analog+digital, 3.3–5 V

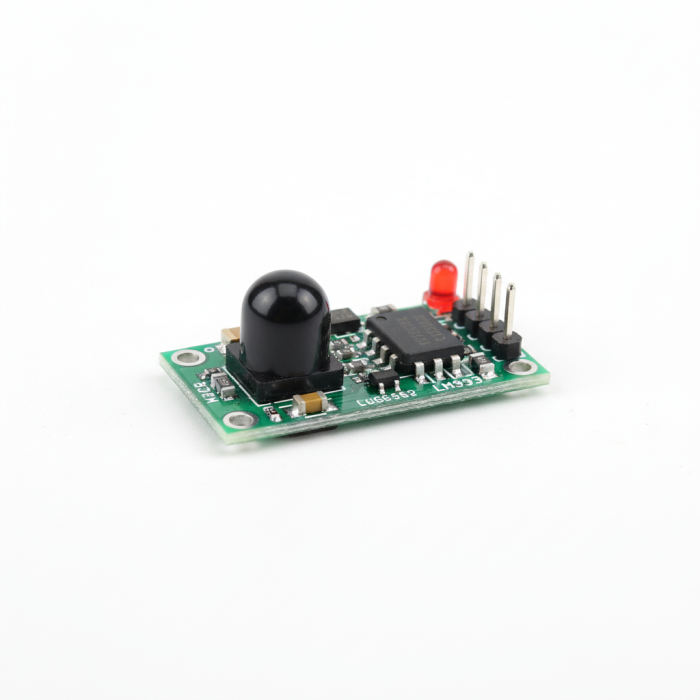

Infrared flame sensor module with photodiode sensitive in the 760–1100 nm band and LM393 comparator. ~60° detection angle, flame detection range 0.2 to 1 m (candle flame). Dual analog and digital output, threshold adjustable by potentiometer. 3.3 to 5 V power supply. Detection indicator LED. Applications: fire alarm, firefighter robot, hearth monitoring, electric arc short circuit detection, industrial safety.
| Sensor Type | Infrared |
|---|---|
| Measurement Range | 0 à 100V |
| Output Type | PWM |
| Accuracy | ±5% |
| Digital Interface | Yes |
| Sensor Supply | 3.3V |
| Brand | VoltCore |
| Mounting Type | Breadboard |
| Voltage Compatibility | 3.3V |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Single |
