TSL2591 High Dynamic Range Light Sensor Module — I²C
€8.90
In stock
SKU
TKP-SEN-LU-007
TSL2591 breakout, 188 µLux–88,000 Lux, I²C, ×9876 gain, ultra-dynamic

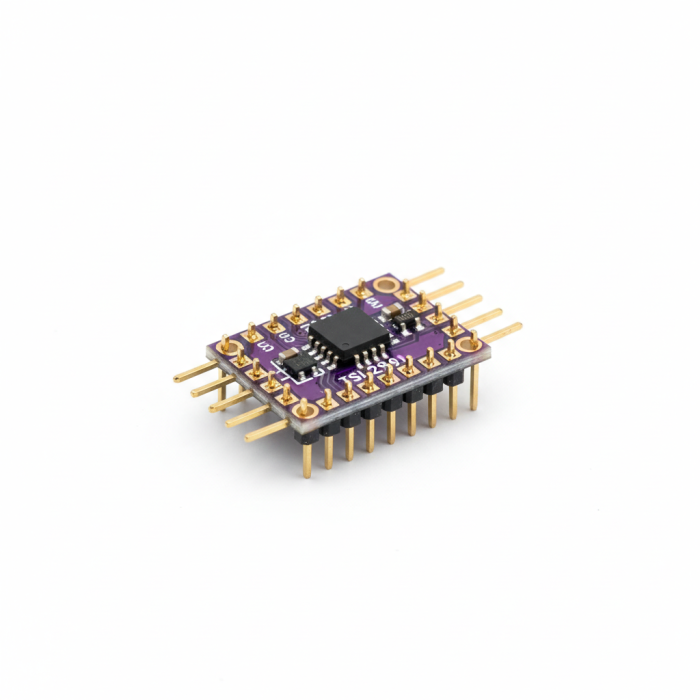

AMS TSL2591 light sensor module on PCB breakout. Extreme dynamic range from 188 µLux to 88,000 Lux (600,000,000:1 ratio). Two photodiodes: full spectrum (visible + IR) and infrared only, enabling pure visible lux calculation. Programmable gain (1×, 25×, 428×, 9876×), integration time 100 ms to 600 ms. I²C interface (address 0x29), 3.3 to 5 V power supply. Programmable threshold interrupt. Consumption 0.4 µA in standby. Ideal for adaptive displays and smart lighting.
| Sensor Type | Light (LDR) |
|---|---|
| Measurement Range | 0 à 100V |
| Output Type | Analog |
| Accuracy | ±5% |
| Digital Interface | No |
| Sensor Supply | 3.3V |
| Brand | NanoSilicon |
| Mounting Type | Breadboard |
| Voltage Compatibility | 3.3V |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Single |
