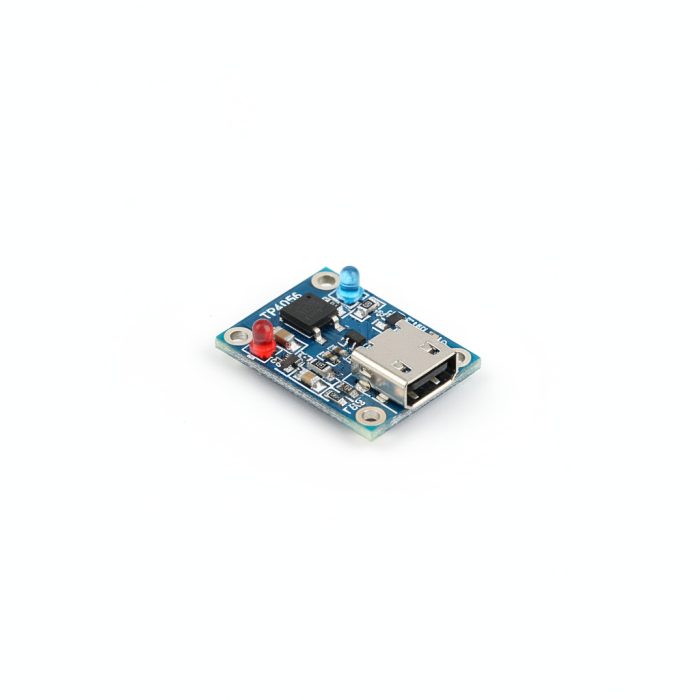

TP4056 USB-C LiPo Charger Module — with DW01 protection
€1.20
In stock
SKU
TKP-ALM-CH-001
TP4056 USB-C, 1 A, DW01 protection, CC/CV, status LEDs, 25 × 19 mm
TP4056 lithium battery charger module with USB-C input and integrated DW01A + dual MOSFET FS8205A protection circuit. Programmed charge current 1 A (Rprog = 1.2 kΩ). Charge voltage 4.2 V ±1%. CC/CV algorithm with automatic termination at 1/10th of rated current. Red LED (charging) and blue LED (charge complete). Protection against overcharge (4.25 V), deep discharge (2.4 V), overcurrent (3 A) and short-circuit. PCB dimensions 25 × 19 mm. Compatible with any single-cell 3.7 V Li-ion or LiPo cell.
| Output Voltage | 5V |
|---|---|
| Output Current | 2A |
| Efficiency Rating | 80 PLUS |
| Regulated | Yes |
| Input Voltage | 5V USB |
| Output Connector | USB-C |
| Brand | VoltCore |
| Mounting Type | Cable |
| Voltage Compatibility | Multi-voltage |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Single |
