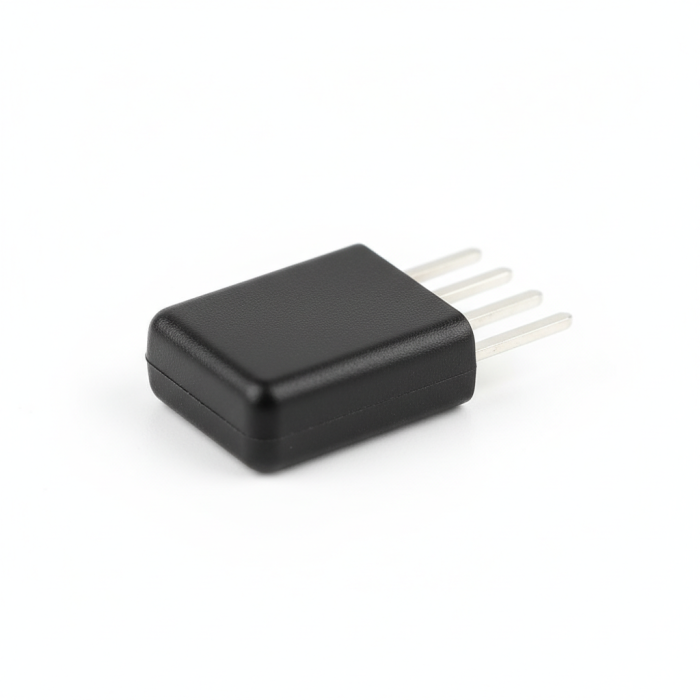

Isolated DC-DC Converter Module 12V to 5V — 1A SIP
€6.90
In stock
SKU
TKP-ALM-DC-006
Isolated DC-DC 12 V → 5 V / 1 A, SIP-4, 1500 VDC isolation, 82%
Galvanically isolated DC-DC converter in SIP-4 (Single Inline Package) housing. 12 V input (range 10.8–13.2 V), regulated 5 V / 1 A output. 1500 VDC galvanic isolation between input and output. Typical efficiency 82%. Output ripple ≤ 50 mVpp. Short-circuit protection with automatic restart. Operating temperature −40 to +85°C. Dimensions 19.5 × 9.8 × 12.5 mm. Through-hole mounting at 2.54 mm pitch. Essential for isolating measurement signals, RS-485 interfaces or CAN buses in industrial and automotive environments.
| Output Voltage | 5V |
|---|---|
| Output Current | 3A |
| Efficiency Rating | >90% |
| Regulated | Yes |
| Input Voltage | 7–35V DC |
| Output Connector | Header Pins |
| Brand | VoltCore |
| Mounting Type | SMD |
| Voltage Compatibility | Multi-voltage |
| RoHS Compliant | Yes |
| Availability | Last Units |
| Packaging | Single |
