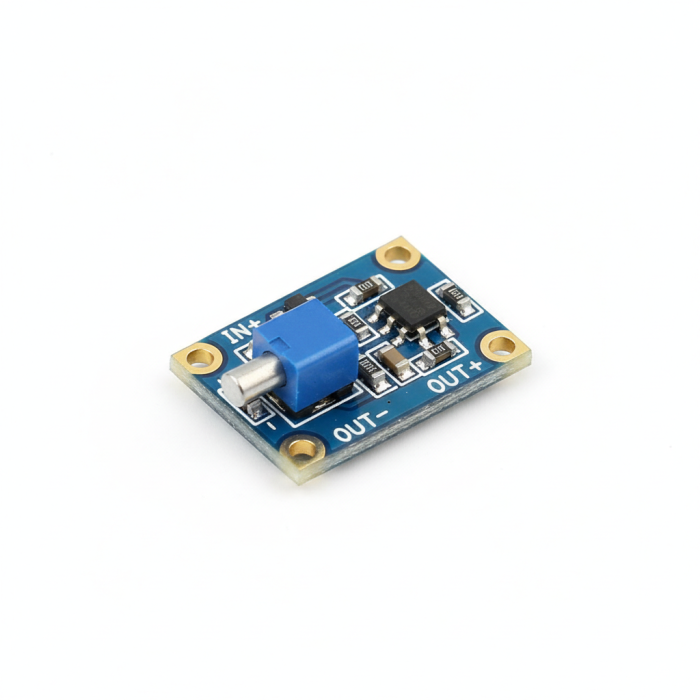

Mini Adjustable MP1584 Step-Down Module 0.8V–20V — 3A
€1.80
In stock
SKU
TKP-ALM-DC-005
Mini MP1584 buck, 4.5–28 V → 0.8–20 V, 3 A, 1.5 MHz, 22 × 17 mm
Ultra-compact DC-DC step-down converter module based on the MP1584EN. Input voltage 4.5–28 V, output adjustable 0.8–20 V via miniature potentiometer. Max continuous current 3 A. Switching frequency 1.5 MHz enabling the use of very small passive components. Typical efficiency 92%. Ultra-small PCB dimensions: 22 × 17 × 4 mm. No terminal block: solder pads. Low ESR MLCC ceramic capacitors. Excellent for space-constrained projects: drones, wearables, miniature robotics.
| Output Voltage | 5V |
|---|---|
| Output Current | 3A |
| Efficiency Rating | >90% |
| Regulated | Yes |
| Input Voltage | 7–35V DC |
| Output Connector | Header Pins |
| Brand | VoltCore |
| Mounting Type | SMD |
| Voltage Compatibility | Multi-voltage |
| RoHS Compliant | Yes |
| Availability | Last Units |
| Packaging | Single |
