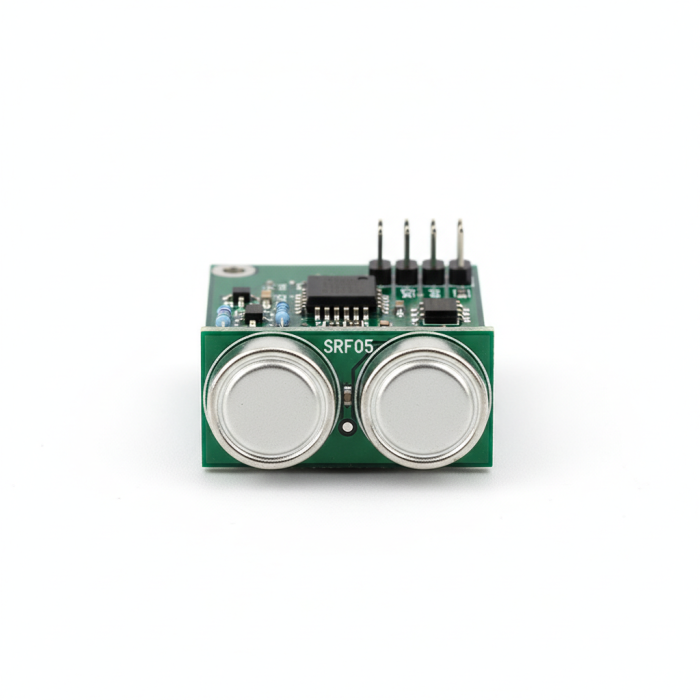

HY-SRF05 Ultrasonic Rangefinder Module — 3 cm to 5 m, Extended Range
€5.90
In stock
SKU
TKP-SEN-UL-004
HY-SRF05 ultrasonic, 3–500 cm, 2 modes, extended range, 5 V, 2 mm resolution
HY-SRF05 ultrasonic distance sensor module (SRF05 compatible). Extended range 3 cm to 500 cm, frequency 40 kHz. Two operating modes: mode 1 with separate Trigger and Echo pins (5 pins, HC-SR04 compatible) and mode 2 with single Trigger/Echo pin (4 pins). Trigger pulse ≥ 10 µs. 5 V power supply, 30 mA consumption. Detection angle ~15°. Resolution ~2 mm. Recommended measurement cycle > 50 ms. Improved range performance compared to HC-SR04.
| Sensor Type | Ultrasonic |
|---|---|
| Measurement Range | 2cm à 4m |
| Output Type | PWM |
| Accuracy | ±2% |
| Digital Interface | Yes |
| Sensor Supply | 5V |
| Brand | NanoSilicon |
| Mounting Type | Breadboard |
| Voltage Compatibility | 5V |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Single |
