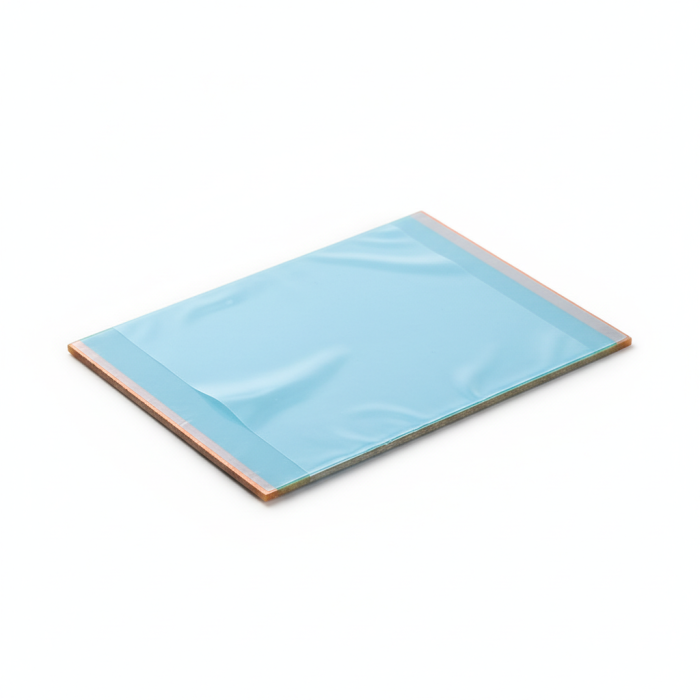

UV Pre-Sensitized Copper Clad Board — Double-Sided 100×160mm
€6.90
In stock
SKU
TKP-PCB-CU-006
UV pre-sensitized double-sided FR4 board 100×160mm, precision photo-etching
Double-sided UV pre-sensitized copper clad board, FR4 1.6 mm substrate, 35 µm copper, dimensions 100 × 160 mm. Positive photosensitive coating pre-applied on both sides, protected by an opaque film. Allows fabrication of high-precision double-sided circuits by UV exposure with a transparency-printed artwork. Resolution up to 0.2 mm (8 mil). Development with sodium carbonate. Store in a cool place away from light.
| PCB Layers | Single-sided |
|---|---|
| PCB Material | FR4 |
| Board Size | Standard (100×70mm) |
| Copper Thickness | 35µm (1oz) |
| Lead-free | Yes |
| Surface Finish | Lead-free HASL |
| Compatible With | Universal |
| Brand | ProtoLab |
| Mounting Type | Not Applicable |
| Voltage Compatibility | Not Applicable |
| RoHS Compliant | Yes |
| Availability | In Stock |
| Packaging | Single |
