16×2 LCD Shield with 5-Button Keypad for Arduino
€6.90
In stock
SKU
TKP-PCB-SH-004

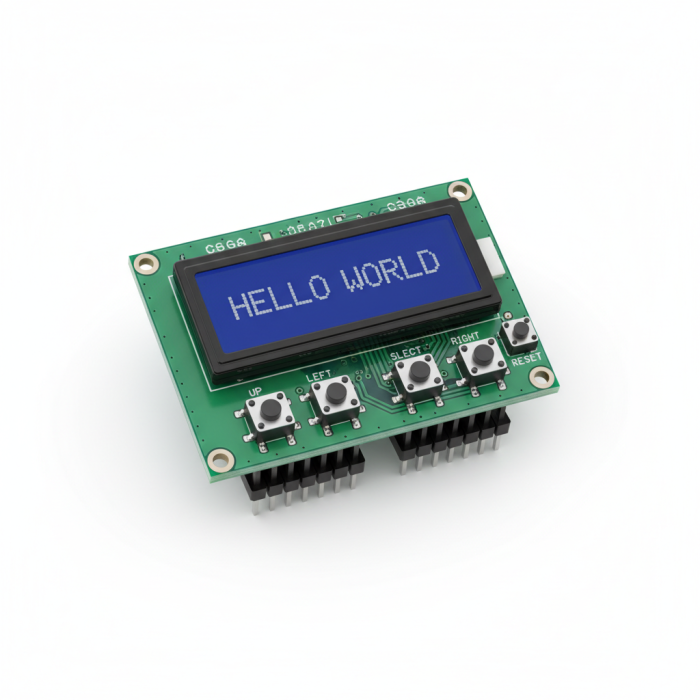

16×2 HD44780 blue LCD shield + 5 navigation buttons, Arduino, stackable
LCD shield for Arduino integrating a 16×2 character LCD display (HD44780) with blue/white backlight and 5 navigation buttons (up, down, left, right, select) plus 1 reset button. The 5 buttons are read via a single analog input (A0) using a resistor network. Integrated contrast adjustment potentiometer. Stacking connectors leaving access to unused pins. Compatible with LiquidCrystal library. Perfect for configuration menus and data display.
| PCB Layers | Double-sided |
|---|---|
| PCB Material | Flexible (Polyimide) |
| Board Size | Small (50×30mm) |
| Copper Thickness | 18µm (0.5oz) |
| Lead-free | Yes |
| Surface Finish | Lead-free HASL |
| Brand | VoltCore |
| Mounting Type | Panel Mount |
| Voltage Compatibility | 5V |
| RoHS Compliant | Yes |
| Availability | New |
| Packaging | Single |
